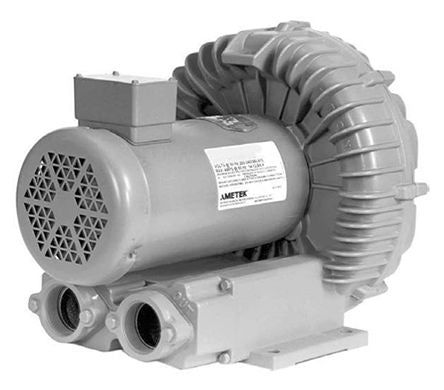

Ametek Regenerative Centrifugal Fan 254 x 244.6 x 303mm, 575 V ac AC [DR303AE86M/038843]; 892-1706
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 575 V ac |
| Blower Type | Regenerative |
| AC or DC Operation | AC |
| Air Flow | 91.79m³/h |
| Series | DR303 |
| Height | 254mm |
| Width | 244.6mm |
| Depth | 303mm |
| Dimensions | 244.6 x 254 x 303mm |
| Outlet Diameter | 31.75mm |
| Mounting Hole Diameter | 10.1mm |
| Inlet Diameter | 31.75mm |
| Termination Type | Terminal |
| Maximum Current | 700mA |
| Direction of Curve | Forward |
| Horizontal Hole Spacing | 83.1 mm, 206.5 mm |
| Special Features | Inlet and Outlet Internal Muffling, Quiet Operation within OSHA Standards, UL & CSA Approved Motor with Permanently Sealed Ball Bearings |
