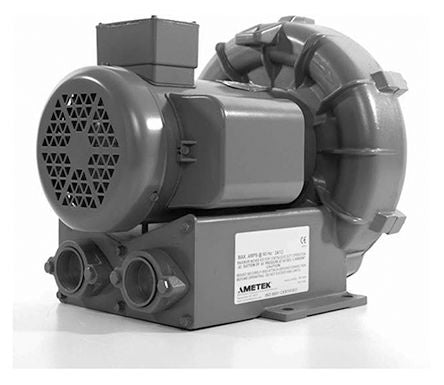

Ametek Regenerative Centrifugal Fan 309.4 x 292.1 x 339.9mm, 575 V ac AC [DR404AL86M/037408]; 892-1722
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 575 V ac |
| Blower Type | Regenerative |
| AC or DC Operation | AC |
| Air Flow | 175.24m³/h |
| Series | DR404 |
| Height | 309.4mm |
| Width | 292.1mm |
| Depth | 339.9mm |
| Dimensions | 292.1 x 309.4 x 339.9mm |
| Bearing Type | Ball |
| Horizontal Hole Spacing | 95.3 mm, 226.8 mm |
| Mounting Hole Diameter | 11.9mm |
| Maximum Current | 1.4A |
| Direction of Curve | Forward |
| Termination Type | Terminal |
| Inlet Diameter | 38.1mm |
| Outlet Diameter | 38.1mm |
| Special Features | Inlet and Outlet Internal Muffling, Quiet Operation within OSHA Standards, UL & CSA Approved Motor with Permanently Sealed Ball Bearings |
