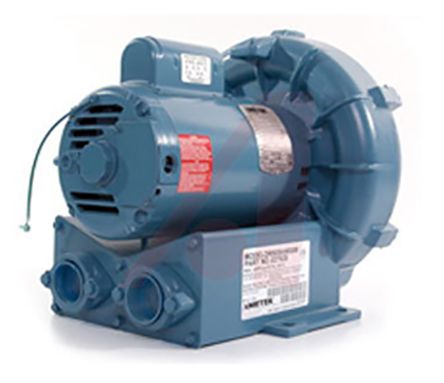

Ametek Regenerative Centrifugal Fan 366.5 x 345.2 x 431mm, 115 V ac, 230 V ac AC [DR505K58M/081882]; 892-1762
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 115 V ac, 230 V ac |
| Blower Type | Regenerative |
| AC or DC Operation | AC |
| Air Flow | 250.35m³/h |
| Series | DR505 |
| Height | 366.5mm |
| Width | 345.2mm |
| Depth | 431mm |
| Dimensions | 345.2 x 366.5 x 431mm |
| Bearing Type | Ball |
| Termination Type | Terminal |
| Special Features | Inlet and Outlet Internal Muffling, Quiet Operation within OSHA Standards, UL & CSA Approved Motor with Permanently Sealed Ball Bearings |
| Outlet Diameter | 38.1mm |
| Inlet Diameter | 38.1mm |
| Horizontal Hole Spacing | 114.3 mm, 261.6 mm |
| Direction of Curve | Forward |
| Mounting Hole Diameter | 15mm |
| Maximum Current | 14 A, 28 A |
