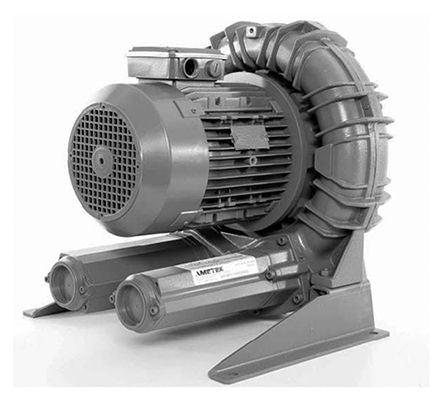

Ametek Regenerative Centrifugal Fan 481.1 x 423.7 x 458.3mm, 142scfm, 230 V ac, 460 V ac AC [DR633D89M/081689]; 892-1813
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 230 V ac, 460 V ac |
| Blower Type | Regenerative |
| AC or DC Operation | AC |
| Air Flow | 236.99m³/h |
| Series | DR633 |
| Height | 481.1mm |
| Width | 423.7mm |
| Depth | 458.3mm |
| Dimensions | 423.7 x 481.1 x 458.3mm |
| Bearing Type | Ball |
| Termination Type | Terminal |
| Outlet Diameter | 50.8mm |
| Maximum Current | 6.8 A, 13.6 A, 15 A |
| Direction of Curve | Forward |
| Horizontal Hole Spacing | 300 mm, 438 mm |
| Special Features | Inlet and Outlet Internal Muffling, Quiet Operation within OSHA Standards, UL & CSA Approved Motor with Permanently Sealed Ball Bearings |
| Inlet Diameter | 50.8mm |
