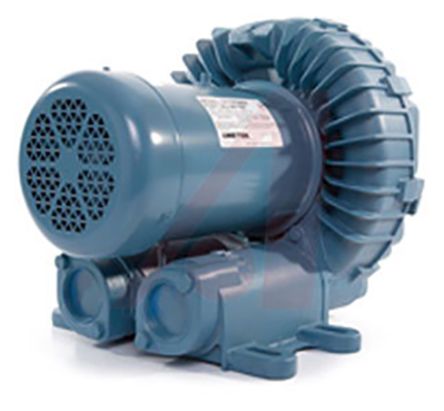

Ametek Regenerative Centrifugal Fan 443 x 426 x 471mm AC [DR757D86X/081171]; 892-1857
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 575 V ac |
| Blower Type | Regenerative |
| AC or DC Operation | AC |
| Air Flow | 550.77m³/h |
| Series | DR757 |
| Height | 443mm |
| Width | 426mm |
| Depth | 471mm |
| Dimensions | 426 x 443 x 471mm |
| Bearing Type | Ball |
| Horizontal Hole Spacing | 142.2 mm, 323.3 mm |
| Inlet Diameter | 63.5mm |
| Special Features | Inlet and Outlet Internal Muffling, Quiet Operation within OSHA Standards, UL & CSA Approved Motor with Permanently Sealed Ball Bearings |
| Termination Type | Terminal |
| Mounting Hole Diameter | 16mm |
| Direction of Curve | Forward |
| Outlet Diameter | 63.5mm |
