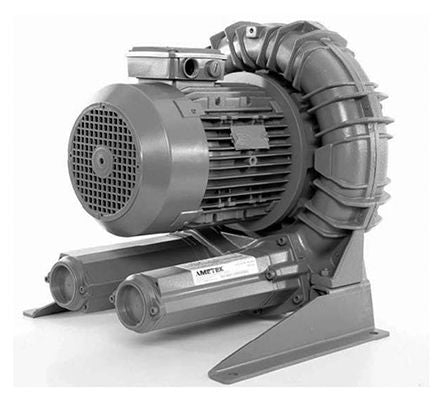

Ametek Regenerative Centrifugal Fan 492.3 x 485.9 x 609.6mm, 184scfm, 575 V ac AC [DR833AY86M/081701]; 892-1863
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 575 V ac |
| Blower Type | Regenerative |
| AC or DC Operation | AC |
| Air Flow | 307.09m³/h |
| Series | DR833 |
| Height | 609.6mm |
| Width | 485.9mm |
| Depth | 492.3mm |
| Dimensions | 485.9 x 609.6 x 492.3mm |
| Bearing Type | Ball |
| Horizontal Hole Spacing | 300 mm, 448.01 mm |
| Outlet Diameter | 50.8mm |
| Inlet Diameter | 50.8mm |
| Direction of Curve | Forward |
| Mounting Hole Diameter | 15mm |
| Special Features | Inlet and Outlet Internal Muffling, Quiet Operation within OSHA Standards, UL & CSA Approved Motor with Permanently Sealed Ball Bearings |
| Termination Type | Terminal |
| Maximum Current | 7.7A |
