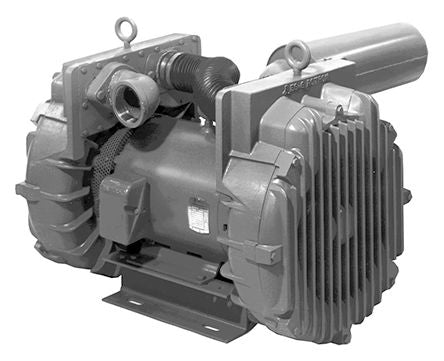

Ametek Regenerative Centrifugal Fan 554 x 254 x 806.5mm, 400scfm, 230 V ac, 460 V ac AC [DRS9BM72 (037032)]; 892-1889
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 230 V ac, 460 V ac |
| Blower Type | Regenerative |
| AC or DC Operation | AC |
| Air Flow | 667.6m³/h |
| Series | DRS9 |
| Height | 806.5mm |
| Width | 254mm |
| Depth | 554mm |
| Dimensions | 254 x 806.5 x 554mm |
| Bearing Type | Ball |
| Direction of Curve | Backward |
| Inlet Diameter | 63.5mm |
| Horizontal Hole Spacing | 234.9 mm, 254 mm |
| Special Features | Inlet and Outlet Internal Muffling, Quiet Operation within OSHA Standards, UL & CSA Approved Motor with Permanently Sealed Ball Bearings |
| Termination Type | Terminal |
| Maximum Current | 28 A, 56 A |
| Mounting Hole Diameter | 14.2mm |
| Outlet Diameter | 63.5mm |
