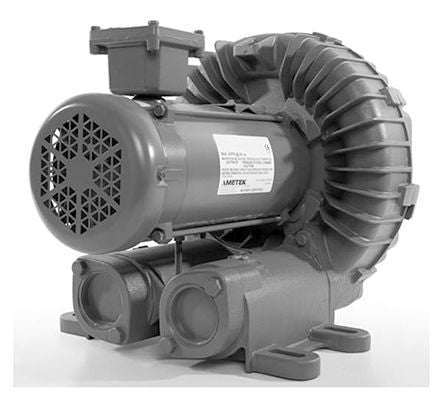

Ametek Regenerative Centrifugal Fan 443 x 425.5 x 553.4mm, 310scfm, 208 → 230 V ac, 460 V ac AC [EN757F72XL/081174]; 892-1908
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 230 V ac, 460 V ac |
| Blower Type | Regenerative |
| AC or DC Operation | AC |
| Air Flow | 517.39m³/h |
| Series | EN757 |
| Height | 443mm |
| Width | 425.5mm |
| Depth | 553.4mm |
| Dimensions | 425.5 x 443 x 553.4mm |
| Bearing Type | Ball |
| Mounting Hole Diameter | 16mm |
| Maximum Current | 7.5 A, 15 A |
| Termination Type | Terminal |
| Special Features | Quiet Operation within OSHA Standards, UL & CSA Approved Motor with Permanently Sealed Ball Bearings for Explosive Gas Atmospheres Class I Group D Minimum |
| Outlet Diameter | 63.5mm |
| Inlet Diameter | 63.5mm |
| Horizontal Hole Spacing | 142.2 mm, 389.9 mm |
| Direction of Curve | Forward |
