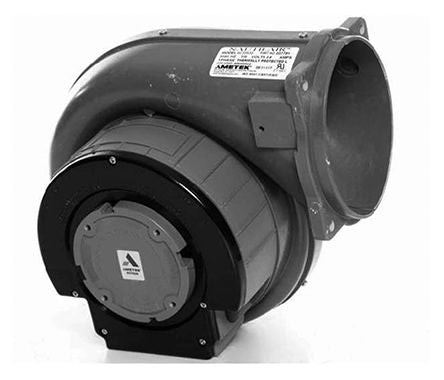

Ametek Centraxial Centrifugal Fan 273 x 184 x 306mm, 540scfm, 220 → 230 V ac AC (Nautilair Series) [NC33A3G/037792]; 892-2065
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 230 V ac |
| Blower Type | Regenerative SPA |
| AC or DC Operation | AC |
| Air Flow | 901.26m³/h |
| Series | Nautilair |
| Height | 273mm |
| Width | 184mm |
| Depth | 306mm |
| Dimensions | 184 x 273 x 306mm |
| Fan Speed | 2900 rpm, 3500 rpm |
| Bearing Type | Ball |
| Mounting Hole Spacing | 120.7 x 108mm |
| Maximum Current | 1.47 A, 1.82 A |
| Special Features | Automatic Thermal Overload Protection on Standard Motor Enclosures, Designed for UL and CSA, Quiet Operation within OSHA Standards |
| Mounting Hole Diameter | 7.1mm |
| Horizontal Hole Spacing | 108mm |
| Inlet Diameter | 150mm |
| Termination Type | Terminal |
| Outlet Diameter | 150mm |
| Vertical Hole Spacing | 120.7mm |
