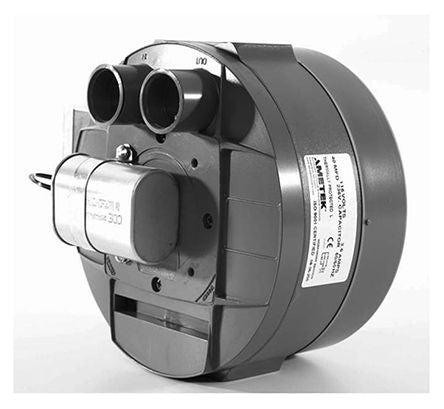

Ametek Regenerative Centrifugal Fan 253.2 x 309.1 x 199.1mm, 60scfm, 380 V ac, 460 V ac AC [SL2P90/036018]; 892-2096
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 380 V ac, 460 V ac |
| Blower Type | Regenerative SPA |
| AC or DC Operation | AC |
| Air Flow | 100.14m³/h |
| Series | SPIRAL Simplex SL2 |
| Height | 253.2mm |
| Width | 309.1mm |
| Depth | 199.1mm |
| Dimensions | 309.1 x 253.2 x 199.1mm |
| Bearing Type | Ball |
| Mounting Hole Spacing | 44.5 x 76.2mm |
| Special Features | Inlet and Outlet Internal Muffling, Quiet Operation within OSHA Standards, UL & CSA Approved Motor with Permanently Sealed Ball Bearings |
| Outlet Diameter | 6.35mm |
| Vertical Hole Spacing | 44.5mm |
| Horizontal Hole Spacing | 76.2mm |
| Termination Type | Terminal |
| Maximum Current | 340 mA, 410 mA |
| Inlet Diameter | 6.35mm |
