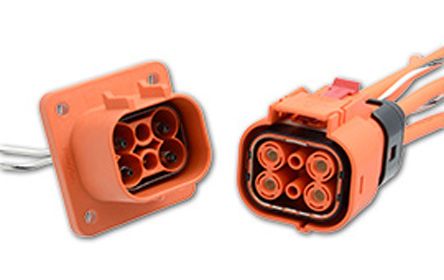

Amphenol Socapex EL Series, RADSOK Receptacle with HVIL Electric vehicle connector Socket, 7.5 → 70A [ELR2A3]; 124-4049
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Range | RADSOK |
| Series | EL |
| Connector Type | RADSOK Receptacle with HVIL |
| Number of Rows | 1 |
| Number of Contacts | 2 |
| Wire Size | 6 mm² |
| Current Rating | 7.5 → 70A |
| Operating Voltage | 800 V ac |
| Connector Gender | Female |
| Contact Gender | Male |
| Key Type | A |
| Standards Met | IEC 60529, UL 94 V-0 |
| Mounting Type | Panel Mount |
| Width | 45.4mm |
| Termination Method | Crimp |
| Depth | 37mm |
| Pin Diameter | 3.6mm |
| IP Rating | IP67 |
| Orientation | Straight |
| Colour | Orange |
| Applications | EV/HEV |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
| Height | 40.6mm |
| For Use With | 2 Position ePower-Lite Plug with HVIL |
