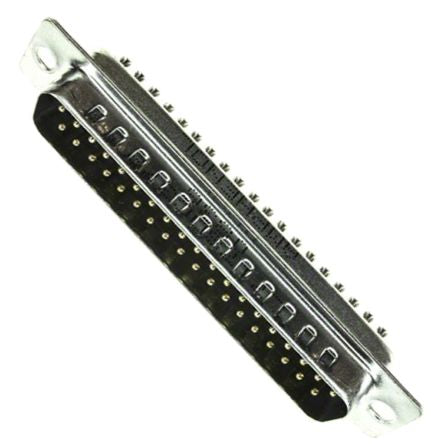

Amphenol Socapex SD Series Panel Mount, 37 Pin Standard D-Sub D-sub Connector Plug, Shell Size C [L717SDC37P]; 691-8768
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 37 |
| Gender | Male |
| Body Orientation | Straight |
| Mounting Type | Panel Mount |
| Pitch | 2.76mm |
| D Connector Type | Standard D-Sub |
| Termination Method | Solder |
| D-Sub Shell Size | C |
| Current Rating | 5.0A |
| Housing Material | Glass Filled Thermoplastic |
| Length | 69.4mm |
| Width | 12.55mm |
| Depth | 15.45mm |
| Dimensions | 69.4 x 12.55 x 15.45mm |
| Series | SD |
| Minimum Operating Temperature | -55.0°C |
| Contact Material | Brass |
| Maximum Operating Temperature | +155°C |
| Contact Plating | Gold |
