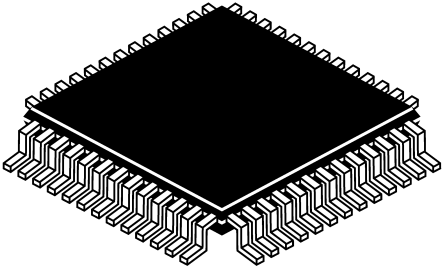

Analog Devices AD5362BSTZ, 8-Channel 16 bit Serial DAC, 52-Pin LQFP [AD5362BSTZ]; 708-9463
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 16 bit |
| Number of DAC Channels | 8 |
| Digital Interface Type | Serial (SPI/QSPI/Microwire) |
| Mounting Type | Surface Mount |
| Package Type | LQFP |
| Power Supply Type | Dual |
| Voltage Reference | External |
| Architecture | Resistor String |
| Pin Count | 52 |
| Maximum Settling Time | 30µs |
| Output Polarity | Bipolar, Unipolar |
| Full Scale Error | ±20mV |
| Minimum Operating Temperature | -40 °C |
| Width | 10mm |
| Integral Nonlinearity Error | ±4LSB |
| Length | 10mm |
| Dimensions | 10 x 10 x 1.4mm |
| Typical Dual Supply Voltage | ±15V |
| Maximum Operating Temperature | +85 °C |
| Height | 1.4mm |
