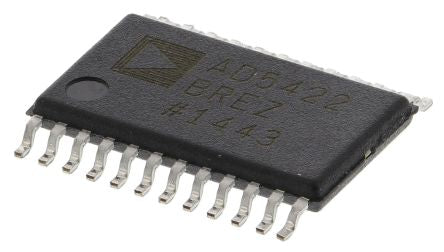

Analog Devices AD5422BREZ, 16 bit Serial DAC, 40ksps, 24-Pin TSSOP [AD5422BREZ]; 709-5897
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 16 bit |
| Number of DAC Channels | 1 |
| Digital Interface Type | Serial (SPI/QSPI/Microwire) |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Power Supply Type | Dual, Single |
| Conversion Rate | 40ksps |
| Typical Single Supply Voltage | 12 V, 15 V, 18 V, 24 V, 28 V |
| Voltage Reference | External, Internal |
| Architecture | R-2R, Resistor String |
| Pin Count | 24 |
| Maximum Settling Time | 40µs |
| Output Polarity | Bipolar, Unipolar |
| Full Scale Error | ±0.2%FSR |
| Maximum Operating Temperature | +85 °C |
| Dimensions | 7.8 x 4.4 x 1mm |
| Width | 4.4mm |
| Minimum Operating Temperature | -40 °C |
| Length | 7.8mm |
| Integral Nonlinearity Error | ±0.024%FSR |
| Typical Dual Supply Voltage | ±12 V, ±15 V, ±18 V, ±24 V, ±28 V |
| Height | 1mm |
