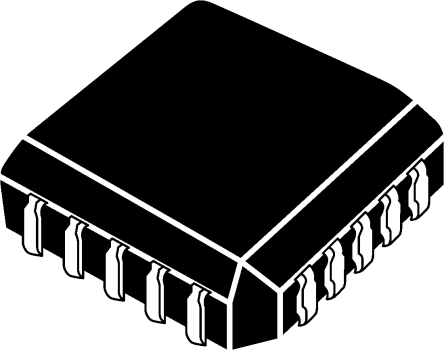

Analog Devices AD558JPZ, 8 bit Parallel DAC, 20-Pin PLCC [AD558JPZ]; 709-5929
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 8 bit |
| Number of DAC Channels | 1 |
| Digital Interface Type | Parallel |
| Mounting Type | Surface Mount |
| Package Type | PLCC |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 5 V, 9 V, 12 V, 15 V |
| Voltage Reference | Internal |
| Architecture | R-2R, Resistor String |
| Pin Count | 20 |
| Maximum Settling Time | 3µs |
| Output Polarity | Unipolar |
| Full Scale Error | ±2.5LSB |
| Maximum Operating Temperature | +70 °C |
| Width | 9.04mm |
| Dimensions | 9.04 x 9.04 x 3.68mm |
| Length | 9.04mm |
| Height | 3.68mm |
| Minimum Operating Temperature | 0 °C |
| Integral Nonlinearity Error | ±0.5LSB |
