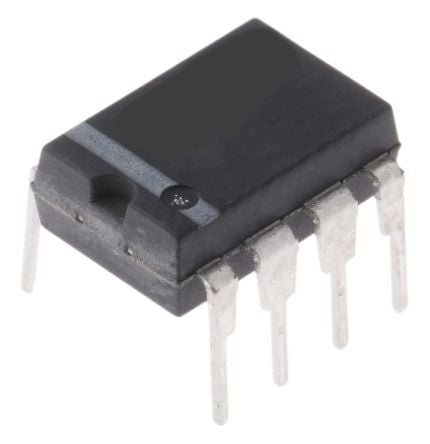

AD712AQ Analog Devices, Dual Operational, Op Amp 100 kHz, 8-Pin CERDIP [AD712AQ]; 183-2002
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Dual Operational |
| Mounting Type | Through Hole |
| Package Type | CERDIP |
| Power Supply Type | Dual |
| Number of Channels per Chip | 2 |
| Pin Count | 8 |
| Typical Gain Bandwidth Product | 4MHz |
| Output Type | Current |
| Typical Dual Supply Voltage | ±15V |
| Typical Slew Rate | 20V/µs |
| Maximum Operating Frequency | 100 kHz |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Output Current | ±25 mA |
| Offset Voltage | 2mV |
| Typical Voltage Gain | 400 V/mV |
| Minimum Input Voltage | ±4.5 V |
| Maximum Input Voltage | ±18 V |
| Dimensions | 10.29 x 7.87 x 3.56mm |
| Length | 10.29mm |
| Height | 3.56mm |
| Input Offset Current | 0.6nA |
| Width | 7.87mm |
| Input Voltage Range | ±4.5 to ±18 V |
| Typical Input Voltage Noise Density | 16nV/√Hz |
