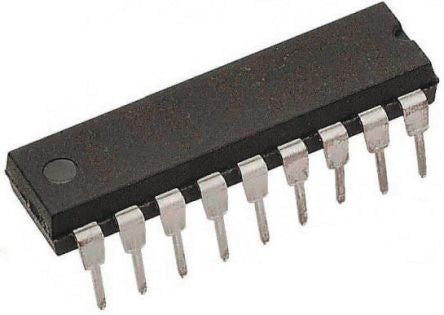

Analog Devices AD7224LNZ, 8 bit Parallel DAC, 143ksps, 18-Pin PDIP [AD7224LNZ]; 758-9752
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 8 bit |
| Number of DAC Channels | 1 |
| Digital Interface Type | Parallel |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Power Supply Type | Dual, Single |
| Conversion Rate | 143ksps |
| Typical Single Supply Voltage | 14.25 → 15.75 V |
| Voltage Reference | External |
| Architecture | R-2R, Resistor String |
| Pin Count | 18 |
| Maximum Settling Time | 7µs |
| Output Polarity | Bipolar, Unipolar |
| Full Scale Error | ±3/2LSB |
| Integral Nonlinearity Error | ±1LSB |
| Width | 7.6mm |
| Length | 13mm |
| Maximum Operating Temperature | +85 °C |
| Dimensions | 13 x 7.6 x 2.65mm |
| Minimum Operating Temperature | -40 °C |
| Typical Dual Supply Voltage | ±2 → ±12.5V |
| Height | 2.65mm |
