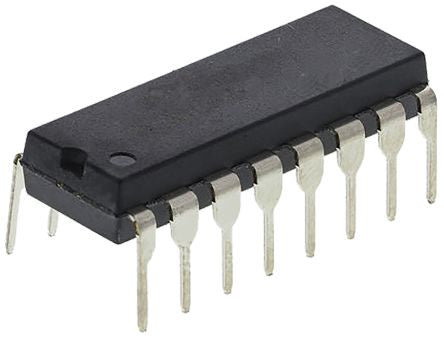

Analog Devices AD7249ANZ, 2-Channel 12 bit Serial DAC, 125ksps, 16-Pin PDIP [AD7249ANZ]; 912-7823
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 12 bit |
| Number of DAC Channels | 2 |
| Digital Interface Type | Serial (SPI) |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Power Supply Type | Dual, Single |
| Conversion Rate | 125ksps |
| Typical Single Supply Voltage | 12 V, 15 V |
| Voltage Reference | External, Internal |
| Architecture | R-2R, Resistor String |
| Pin Count | 16 |
| Maximum Settling Time | 10µs |
| Output Polarity | Bipolar, Unipolar |
| Full Scale Error | ±6LSB |
| Minimum Operating Temperature | -40 °C |
| Integral Nonlinearity Error | ±1LSB |
| Width | 6.35mm |
| Typical Dual Supply Voltage | ±12 V, ±15 V |
| Dimensions | 20.07 x 6.35 x 3.3mm |
| Maximum Operating Temperature | +85 °C |
| Length | 20.07mm |
| Height | 3.3mm |
