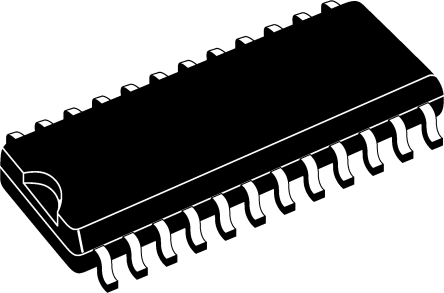

Analog Devices AD7306JRZ, Multiprotocol Transceiver, 1 (RS-422), 2 (RS-232)-TX 1/2-RX 1 (RS-422), 2 (RS-232)-TRX, 24-Pin [AD7306JRZ]; 159-7794
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Transmitters | 1 (RS-422), 2 (RS-232) |
| Number of Receivers | 1 (RS-422), 2 (RS-232) |
| Number of Transceivers | 1 (RS-422), 2 (RS-232) |
| Number of Drivers per Line | 1 (RS-422), 2 (RS-232) |
| Number of Receivers per Line | 1 (RS-422), 2 (RS-232) |
| Mounting Type | Surface Mount |
| Package Type | SOIC W |
| Pin Count | 24 |
| Transmitter Signal Type | Differential, Single Ended |
| Receiver Signal Type | Differential, Single Ended |
| Interface Standards | EIA-232/ EIA-422/ RS-232/ RS-422 |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 5 V |
| Width | 7.6mm |
| Height | 2.35mm |
| Maximum Operating Temperature | +70 °C |
| Length | 15.6mm |
| Dimensions | 15.6 x 7.6 x 2.35mm |
| Minimum Operating Temperature | 0 °C |
