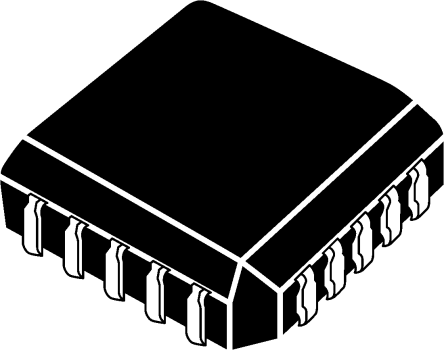

Analog Devices AD7628KPZ, 2-Channel 8 bit Parallel DAC, 2.9Msps, 20-Pin PLCC [AD7628KPZ]; 159-8090
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 8 bit |
| Number of DAC Channels | 2 |
| Digital Interface Type | Parallel |
| Mounting Type | Surface Mount |
| Package Type | PLCC |
| Power Supply Type | Single |
| Conversion Rate | 2.9Msps |
| Typical Single Supply Voltage | 12 → 15 V |
| Voltage Reference | External |
| Architecture | R-2R, Resistor String |
| Pin Count | 20 |
| Maximum Settling Time | 0.4µs |
| Output Polarity | Bipolar, Unipolar |
| Width | 9.04mm |
| Height | 4.57mm |
| Minimum Operating Temperature | -40 °C |
| Integral Nonlinearity Error | ±0.5LSB |
| Length | 9.04mm |
| Maximum Operating Temperature | +85 °C |
| Dimensions | 9.04 x 9.04 x 4.57mm |
