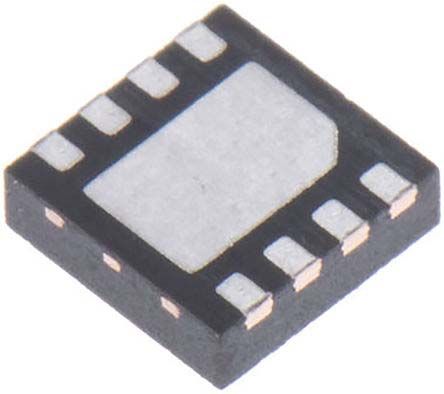

AD8045ACPZ-REEL7 Analog Devices, High Speed, Op Amp, RRIO, 1GHz, 5 V, 8-Pin LFCSP [AD8045ACPZ-REEL7]; 153-3149
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | High Speed |
| Mounting Type | Surface Mount |
| Package Type | LFCSP |
| Power Supply Type | Dual, Single |
| Number of Channels per Chip | 1 |
| Pin Count | 8 |
| Typical Single Supply Voltage | 5 V |
| Typical Gain Bandwidth Product | 1GHz |
| Typical Dual Supply Voltage | ±5V |
| Typical Slew Rate | 1350V/µs |
| Maximum Operating Frequency | 100 kHz |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Offset Voltage | 1mV |
| Typical Voltage Gain | 64 dB |
| Width | 3.1mm |
| Rail to Rail | Rail to Rail Input/Output |
| Maximum Input Voltage | ±6 V, 12 V |
| Height | 0.75mm |
| Output Current | 70 mA |
| Dimensions | 3.1 x 3.1 x 0.75mm |
| Typical Input Voltage Noise Density | 3nV/√Hz |
| Length | 3.1mm |
| Input Voltage Range | ±1.6 → ±6 V, 3.3 → 12 V |
| Minimum Input Voltage | ±1.65 V, 3.3 V |
