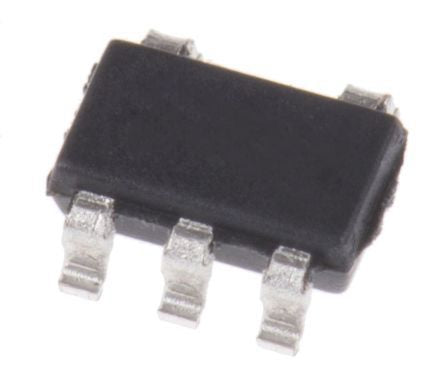

AD8065ARTZ-REEL7 Analog Devices,, Op Amp 5 MHz, 5 → 24 V, 5-Pin SOT-23 [AD8065ARTZ-REEL7]; 183-1894
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | FastFet Operational Amplifier |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Power Supply Type | Single |
| Number of Channels per Chip | 1 |
| Pin Count | 5 |
| Typical Single Supply Voltage | 5 → 24 V |
| Typical Gain Bandwidth Product | 145MHz |
| Output Type | Rail to Rail |
| Typical Slew Rate | 180V/µs |
| Maximum Operating Frequency | 5 MHz |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Offset Voltage | 2.6mV |
| Minimum Input Voltage | 5 V |
| Maximum Input Voltage | 24 V |
| Width | 1.7mm |
| Typical Voltage Gain | 113 dB |
| Input Offset Current | 10pA |
| Height | 1.3mm |
| Length | 3mm |
| Dimensions | 3 x 1.7 x 1.3mm |
| Input Voltage Range | 5 → 24 V |
| Typical Input Voltage Noise Density | 7nV/√Hz |
| Output Current | 35 mA |
