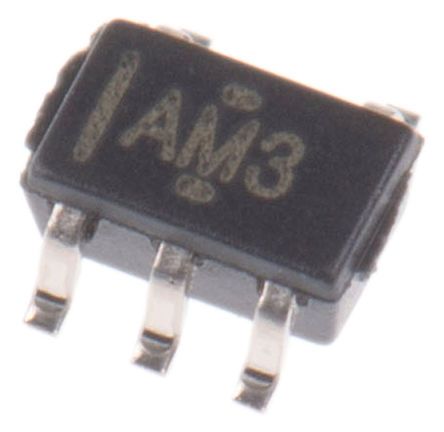

AD8541AKSZ-REEL7 Analog Devices, CMOS, Op Amp, RRIO, 1MHz, 5-Pin SC-70 [AD8541AKSZ-REEL7]; 160-3308
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | CMOS |
| Mounting Type | Surface Mount |
| Package Type | SC-70 |
| Power Supply Type | Single |
| Number of Channels per Chip | 1 |
| Pin Count | 5 |
| Typical Gain Bandwidth Product | 1MHz |
| Typical Slew Rate | 0.92V/µs |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Maximum Input Voltage | 5.5 V |
| Minimum Input Voltage | 2.7 V |
| Typical Voltage Gain | 114 dB |
| Width | 1.35mm |
| Rail to Rail | Rail to Rail Input/Output |
| Offset Voltage | 7mV |
| Height | 1mm |
| Input Voltage Range | 2.7 → 5.5 V |
| Typical Input Voltage Noise Density | 42nV/√Hz |
| Dimensions | 2.2 x 1.35 x 1mm |
| Length | 2.2mm |
| Output Current | 30 mA |
| Input Offset Current | 500pA |
