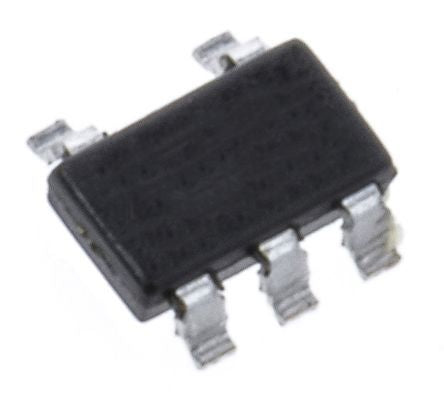

AD8603AUJZ-REEL7 Analog Devices, Precision, Op Amp, RRIO 100 kHz, 1.8 → 5 V, 5-Pin TSOT [AD8603AUJZ-REEL7]; 183-1768
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Precision |
| Mounting Type | Surface Mount |
| Package Type | TSOT |
| Power Supply Type | Dual, Single |
| Number of Channels per Chip | 1 |
| Pin Count | 5 |
| Typical Single Supply Voltage | 1.8 → 5 V |
| Typical Gain Bandwidth Product | 400kHz |
| Output Type | Rail to Rail |
| Typical Dual Supply Voltage | ±0.9 to ±2.5V |
| Typical Slew Rate | 0.1V/µs |
| Maximum Operating Frequency | 100 kHz |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Typical Voltage Gain | 1000 V/mV |
| Width | 1.6mm |
| Input Voltage Range | ±0.9 → ±2.5 V, 1.8 → 5 V |
| Maximum Input Voltage | ±2.5 V, 5 V |
| Offset Voltage | 700µV |
| Rail to Rail | Rail to Rail Input/Output |
| Minimum Input Voltage | ±0.9 V, 1.8 V |
| Height | 0.9mm |
| Length | 2.9mm |
| Dimensions | 2.9 x 1.6 x 0.9mm |
| Typical Input Voltage Noise Density | 25nV/√Hz |
| Input Offset Current | 250pA |
