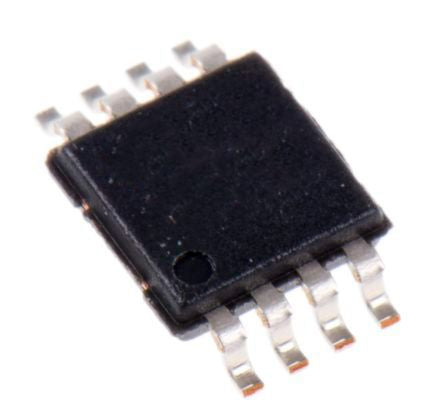

AD8606ARMZ-REEL Analog Devices, Low Noise, Op Amp, RRIO 1 MHz, 2.7 → 5.5 V, 8-Pin MSOP [AD8606ARMZ-REEL]; 183-1769
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Low Noise |
| Mounting Type | Surface Mount |
| Package Type | MSOP |
| Power Supply Type | Single |
| Number of Channels per Chip | 2 |
| Pin Count | 8 |
| Typical Single Supply Voltage | 2.7 → 5.5 V |
| Typical Gain Bandwidth Product | 10MHz |
| Output Type | Rail to Rail |
| Typical Slew Rate | 5V/µs |
| Maximum Operating Frequency | 1 MHz |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Length | 3.2mm |
| Output Current | ±80 mA |
| Dimensions | 3.2 x 3.2 x 0.95mm |
| Typical Input Voltage Noise Density | 12nV/√Hz |
| Input Voltage Range | 2.7 → 5.5 V |
| Minimum Input Voltage | 2.7 V |
| Typical Voltage Gain | 1000 V/mV |
| Offset Voltage | 750µV |
| Rail to Rail | Rail to Rail Input/Output |
| Width | 3.2mm |
| Maximum Input Voltage | 5.5 V |
| Input Offset Current | 75pA |
| Height | 0.95mm |
