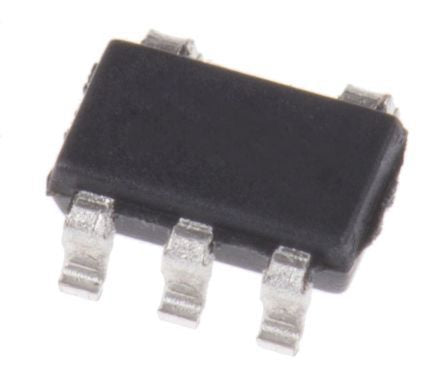

AD8628ARTZ-REEL7 Analog Devices, Zero Drift, Op Amp, RRIO 10 Hz, 2.7 → 5.5 V, 5-Pin SOT-23 [AD8628ARTZ-REEL7]; 183-1910
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Zero Drift |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Power Supply Type | Dual, Single |
| Number of Channels per Chip | 1 |
| Pin Count | 5 |
| Typical Single Supply Voltage | 2.7 → 5.5 V |
| Typical Gain Bandwidth Product | 2.5MHz |
| Output Type | Rail to Rail, Swing |
| Typical Dual Supply Voltage | ±1.35 to ±2.5V |
| Typical Slew Rate | 1V/µs |
| Maximum Operating Frequency | 10 Hz |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Rail to Rail | Rail to Rail Input/Output |
| Width | 1.7mm |
| Offset Voltage | 10µV |
| Maximum Input Voltage | ±2.5 V, 5.5 V |
| Minimum Input Voltage | ±2.5 V, 2.7 V |
| Typical Voltage Gain | 145 dB |
| Length | 3mm |
| Dimensions | 3 x 1.7 x 1.3mm |
| Typical Input Voltage Noise Density | 22nV/√Hz |
| Height | 1.3mm |
| Input Offset Current | 250pA |
| Input Voltage Range | ±1.35 → ±2.5 V, 2.7 → 5.5 V |
| Output Current | ±30 mA |
