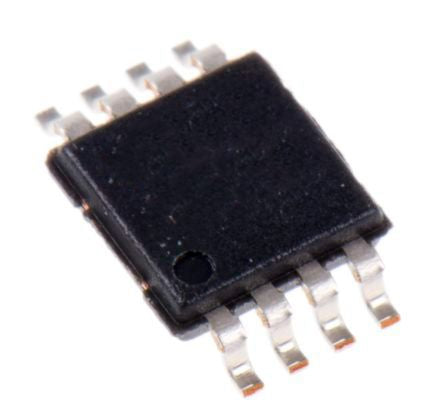

AD8666ARMZ Analog Devices,, Op Amp 10 kHz, 5 → 16 V, 8-Pin MSOP [AD8666ARMZ]; 183-1776
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | MSOP |
| Power Supply Type | Dual, Single |
| Number of Channels per Chip | 2 |
| Pin Count | 8 |
| Typical Single Supply Voltage | 5 → 16 V |
| Typical Gain Bandwidth Product | 4MHz |
| Output Type | Rail to Rail |
| Typical Dual Supply Voltage | ±2.5 to ±8V |
| Typical Slew Rate | 3.5V/µs |
| Maximum Operating Frequency | 10 kHz |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Width | 3.2mm |
| Offset Voltage | 5mV |
| Maximum Input Voltage | ±8 V, 16 V |
| Length | 3.2mm |
| Input Offset Current | 70pA |
| Dimensions | 3.2 x 3.2 x 0.95mm |
| Typical Input Voltage Noise Density | 10nV/√Hz |
| Input Voltage Range | ±2.5 → ±8 V, 5 → 16 V |
| Typical Voltage Gain | 255 V/mV |
| Minimum Input Voltage | ±2.5 V, 5 V |
| Height | 0.95mm |
