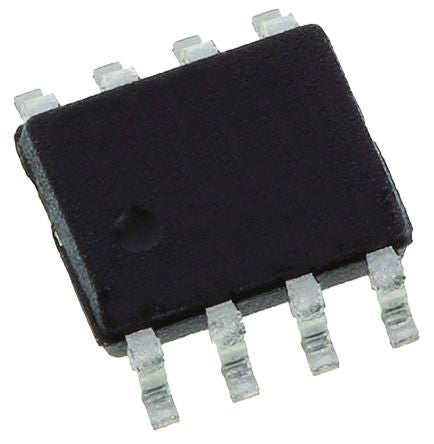

ADA4622-1ARZ Analog Devices, Precision, Op Amp, RRO, 8MHz, 30 V, 8-Pin SOIC [ADA4622-1ARZ]; 144-6440
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Precision |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Power Supply Type | Single |
| Number of Channels per Chip | 1 |
| Pin Count | 8 |
| Typical Single Supply Voltage | 30 V |
| Typical Gain Bandwidth Product | 8MHz |
| Typical Slew Rate | -18 (High → Low) V/μs, 23 (Low → High) V/μs |
| Maximum Operating Frequency | 8 MHz |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Input Voltage Range | -15.2 → +14 V |
| Minimum Input Voltage | -15.2 V |
| Offset Voltage | ±0.8mV |
| Rail to Rail | Rail to Rail Output |
| Width | 1.7mm |
| Maximum Input Voltage | 14 V |
| Typical Voltage Gain | 122 dB |
| Height | 1.5mm |
| Output Current | 20 mA |
| Length | 5mm |
| Dimensions | 5 x 4 x 1.5mm |
| Typical Input Voltage Noise Density | 30 nV/√Hz @ 10 Hz |
