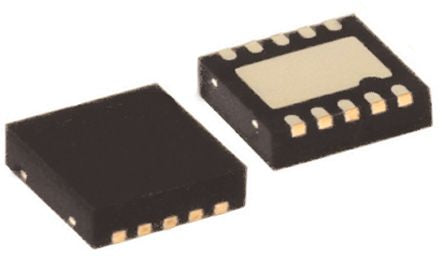

ADA4807-2ACPZ-R2 Analog Devices, Low Noise, Op Amp, RRIO, 180MHz, 3 → 10 V, 10-Pin LFCSP [ADA4807-2ACPZ-R2]; 893-0435
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Low Noise |
| Mounting Type | Surface Mount |
| Package Type | LFCSP |
| Power Supply Type | Dual, Single |
| Number of Channels per Chip | 1 |
| Pin Count | 10 |
| Typical Single Supply Voltage | 3 → 10 V |
| Typical Gain Bandwidth Product | 180MHz |
| Typical Dual Supply Voltage | ±1.5 → ±5V |
| Typical Slew Rate | 250V/µs |
| Maximum Operating Frequency | 100 kHz |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Input Voltage Range | 2.7 → 11 V |
| Rail to Rail | Rail to Rail Input/Output |
| Offset Voltage | ±750µV |
| Typical Voltage Gain | 130 dB |
| Output Current | 60 mA |
| Input Offset Current | 130nA |
| Maximum Input Voltage | 11 V |
| Minimum Input Voltage | 2.7 V |
| Width | 3.1mm |
| Typical Input Voltage Noise Density | 5.8nV/√Hz |
| Length | 3.1mm |
| Dimensions | 3.1 x 3.1 x 0.8mm |
| Height | 0.8mm |
