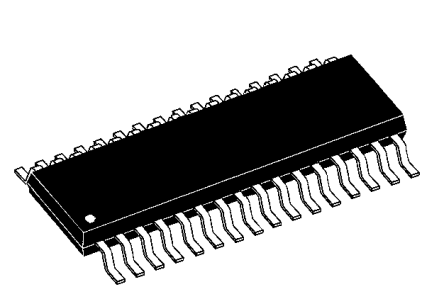

Analog Devices ADG3247BRUZ, Bus Switch, 8 x 1:1, 38-Pin TSSOP [ADG3247BRUZ]; 158-0220
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | 8 x 1:1 |
| Number of Elements per Chip | 2 |
| Number of Inputs per Chip | 16 |
| Number of Outputs per Chip | 16 |
| Maximum On Resistance | 15Ω |
| Maximum Quiescent Current | 1200µA |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Pin Count | 38 |
| Maximum High Level Output Current | -25mA |
| Maximum Low Level Output Current | 25mA |
| Maximum Propagation Delay Time @ Maximum CL | 0.225 ns @ 3 V |
| Dimensions | 9.7 x 4.4 x 1.05mm |
| Propagation Delay Test Condition | 50pF |
| Width | 4.4mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Height | 1.05mm |
| Length | 9.7mm |
| Maximum Operating Supply Voltage | 3.6 V |
| Minimum Operating Supply Voltage | 2.3 V |
