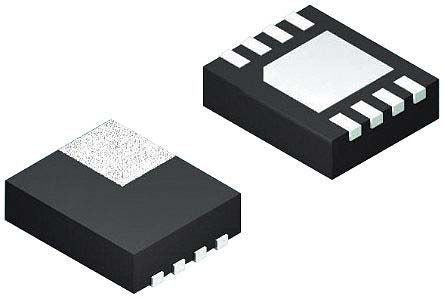

Analog Devices ADP7104ACPZ-2.5-R7, LDO Voltage Regulator Controller, 500mA, 2.5 V, ±0.8% 8-Pin, LFCSP [ADP7104ACPZ-2.5-R7]; 153-3239
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Dropout Voltage at Maximum Current | 550 mV @ 500 mA |
| Output Voltage | 2.5 V |
| Output Type | Fixed |
| Package Type | LFCSP |
| Maximum Output Current | 500mA |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 3.3 V |
| Maximum Input Voltage | 20 V |
| Pin Count | 8 |
| Polarity | Positive |
| Number of Outputs | 1 |
| Quiescent Current | 1600µA |
| Accuracy | ±0.8% |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Dimensions | 3.1 x 3.1 x 0.75mm |
| Length | 3.1mm |
| Enable | Yes |
| Height | 0.75mm |
| Load Regulation | 0.75 %/A |
| Width | 3.1mm |
| Line Regulation | 0.015 %/V |
