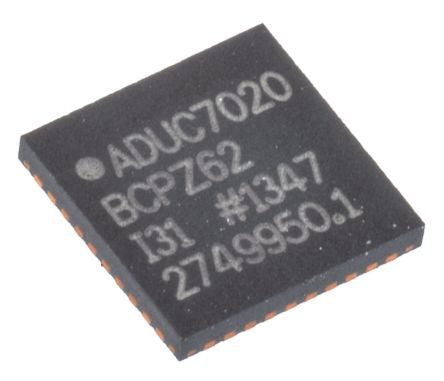

Analog Devices ADUC7020BCPZ62, 16/32bit ARM7TDMI Microcontroller, 44MHz, 62 kB Flash, 40-Pin LFCSP WQ [ADUC7020BCPZ62]; 708-9397
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | ADuC7 |
| Package Type | LFCSP WQ |
| Mounting Type | Surface Mount |
| Pin Count | 40 |
| Device Core | ARM7TDMI |
| Data Bus Width | 16/32bit |
| Program Memory Size | 62 kB |
| Maximum Frequency | 44MHz |
| RAM Size | 8 kB |
| Number of PWM Units | 1 |
| ADC Channels | 5 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 2.7 → 3.6 V |
| Maximum Operating Temperature | +125 °C |
| Instruction Set Architecture | RISC |
| Number of Timers | 4 |
| PWM Channels | 6 |
| ADCs | 5 x 12 bit |
| Length | 6mm |
| ADC Resolution | 12bit |
| Number of ADC Units | 1 |
| Number of I2C Channels | 2 |
| Pulse Width Modulation | 6 x 16 bit |
| Width | 6mm |
| PWM Resolution | 16bit |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 6 x 6 x 0.85mm |
| Program Memory Type | Flash |
| Timers | 2 x 16 bit, 2 x 32 bit |
| Number of UART Channels | 1 |
| Height | 0.85mm |
| Timer Resolution | 16 bit, 32 bit |
