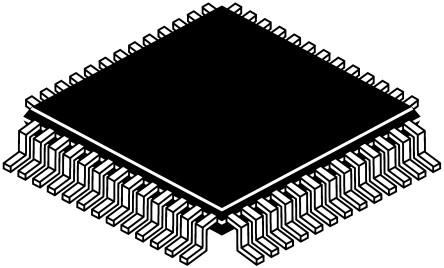

Analog Devices ADUC824BSZ, 8bit 8052 Microcontroller, 12.58MHz, 8 kB, 640 B Flash, 52-Pin MQFP [ADUC824BSZ]; 912-8930
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | ADuC8 |
| Package Type | MQFP |
| Mounting Type | Surface Mount |
| Pin Count | 52 |
| Device Core | 8052 |
| Data Bus Width | 8bit |
| Program Memory Size | 8 kB, 640 B |
| Maximum Frequency | 12.58MHz |
| RAM Size | 256 B |
| ADC Channels | 2 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 2.7 → 5.25 V |
| Maximum Operating Temperature | +85 °C |
| Length | 10.11mm |
| ADCs | 2(2 x 24 bit) |
| Timer Resolution | 16bit |
| Height | 2.09mm |
| Width | 10.11mm |
| Number of I2C Channels | 1 |
| Number of ADC Units | 2 |
| Instruction Set Architecture | CISC |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 24bit |
| Program Memory Type | Flash |
| Number of UART Channels | 1 |
| Dimensions | 10.11 x 10.11 x 2.09mm |
| Number of Timers | 3 |
| Timers | 3 x 16 bit |
