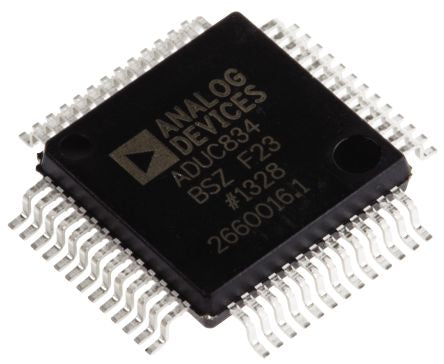

Analog Devices ADUC834BSZ, 8bit 8052 Microcontroller, 12.58MHz, 4 kB, 62 kB Flash, 52-Pin MQFP [ADUC834BSZ]; 158-0454
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | ADuC8 |
| Package Type | MQFP |
| Mounting Type | Surface Mount |
| Pin Count | 52 |
| Device Core | 8052 |
| Data Bus Width | 8bit |
| Program Memory Size | 4 kB, 62 kB |
| Maximum Frequency | 12.58MHz |
| RAM Size | 2.304 MB |
| Number of PWM Units | 2 |
| ADC Channels | 4 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 2.7 → 5.25 V |
| Number of UART Channels | 1 |
| Number of Timers | 3 |
| Number of I2C Channels | 1 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 2(6 x 16 bit) |
| ADCs | 4-ch x 16 bit, 4-ch x 24 bit |
| Length | 10.2mm |
| Maximum Operating Temperature | +125 °C |
| Number of ADC Units | 2 |
| Instruction Set Architecture | CISC |
| PWM Resolution | 16bit |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 16 bit, 24 bit |
| Dimensions | 10.2 x 10.2 x 2.1mm |
| Timers | 3 x 16 bit |
| Width | 10.2mm |
| PWM Channels | 6 |
| Height | 2.1mm |
| Timer Resolution | 16bit |
