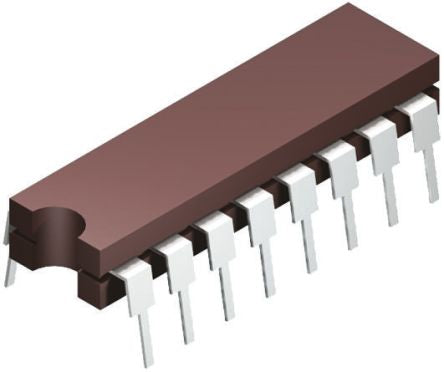

Analog Devices DAC08EQ, 8 bit Parallel DAC, 11.8Msps, 16-Pin CERDIP [DAC08EQ]; 759-2008
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 8 bit |
| Digital Interface Type | Parallel |
| Mounting Type | Through Hole |
| Package Type | CERDIP |
| Power Supply Type | Dual |
| Conversion Rate | 11.8Msps |
| Voltage Reference | External |
| Architecture | R-2R, Resistor String |
| Pin Count | 16 |
| Maximum Settling Time | 0.085µs |
| Output Polarity | Bipolar, Unipolar |
| Full Scale Error | ±1LSB |
| Length | 21.34mm |
| Integral Nonlinearity Error | ±0.19%FS |
| Width | 7.87mm |
| Maximum Operating Temperature | +70 °C |
| Typical Dual Supply Voltage | ±4.5 → ±18V |
| Height | 5.08mm |
| Dimensions | 21.34 x 7.87 x 5.08mm |
| Minimum Operating Temperature | 0 °C |
