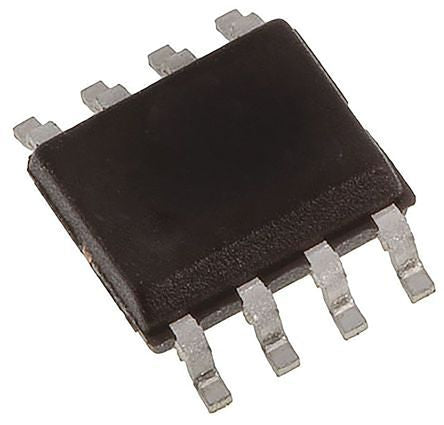

Voltage Ref. Precision 5V 15mA SOIC8 [LT1027ECS8-5#PBF]; 153-3563
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Voltage | 5V |
| Package Type | SOIC |
| Reference Type | Fixed |
| Initial Accuracy | ±0.1 % |
| Mounting Type | Surface Mount |
| Topology | Series |
| Maximum Output Current | 15mA |
| Maximum Input Voltage | 40 V |
| Minimum Output Voltage | 4.95 V |
| Maximum Output Voltage | 5.05 V |
| Pin Count | 8 |
| Line Regulation | 8 ppm/V |
| Load Regulation | 8 ppm/V, 120 ppm/V |
| Dimensions | 5.004 x 3.988 x 1.498mm |
| Length | 5mm |
| Maximum Operating Temperature | +70 °C |
| Minimum Operating Temperature | 0 °C |
| Height | 1.498mm |
| Width | 3.988mm |
