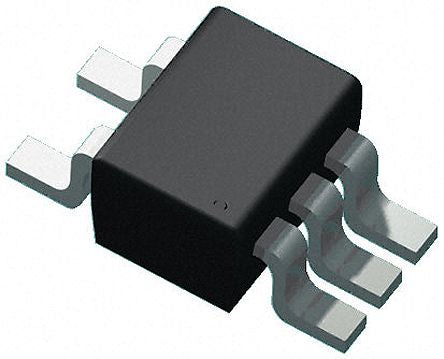

LT6220CS5#TRMPBF Linear Technology, Low Power, Op Amp, 60MHz, 5-Pin TSOT [LT6220CS5#TRMPBF]; 164-6062
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Low Power |
| Mounting Type | Surface Mount |
| Package Type | TSOT |
| Power Supply Type | Dual |
| Number of Channels per Chip | 1 |
| Pin Count | 5 |
| Typical Gain Bandwidth Product | 60MHz |
| Output Type | Rail to Rail |
| Typical Dual Supply Voltage | ±2.2V |
| Typical Slew Rate | 20V/µs |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Width | 1.5mm |
| Typical Input Voltage Noise Density | 10nV/√Hz |
| Minimum Input Voltage | -1.4 V |
| Offset Voltage | 70µV |
| Output Current | 50 mA |
| Dimensions | 2.9 x 1.5 x 0.8mm |
| Input Voltage Range | -1.4 → 1.4 V |
| Height | 0.8mm |
| Input Offset Current | 20nA |
| Typical Voltage Gain | 10 V/mV, 90 V/mV, 100 V/mV |
| Length | 2.9mm |
| Maximum Input Voltage | 1.4 V |
