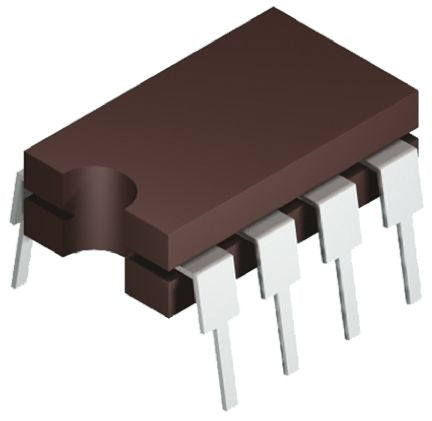

Analog Devices REF02AZ, Fixed Series Voltage Reference 5V, ±0.3 % 8-Pin, CERDIP [REF02AZ]; 759-2054
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Voltage | 5V |
| Package Type | CERDIP |
| Reference Type | Fixed |
| Initial Accuracy | ±0.3 % |
| Mounting Type | Through Hole |
| Topology | Series |
| Maximum Output Current | 10mA |
| Maximum Input Voltage | 36 V |
| Minimum Output Voltage | 4.985 V |
| Maximum Output Voltage | 5.015 V |
| Pin Count | 8 |
| Line Regulation | 150 ppm/V |
| Load Regulation | 120 ppm/mA |
| Dimensions | 10.29 x 7.87 x 3.56mm |
| Maximum Operating Temperature | +125 °C |
| Height | 3.56mm |
| Length | 10.29mm |
| Minimum Operating Temperature | -55 °C |
| Width | 7.87mm |
