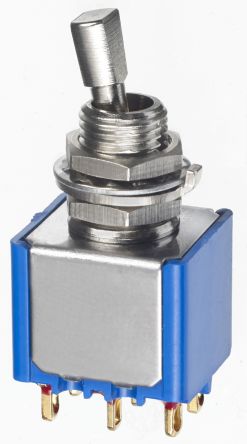

APEM Double Pole Double Throw (DPDT) Toggle Switch, Momentary On-Off-Momentary On, Panel Mount [5647CDB12]; 123-2408
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | DPDT |
| Switch Operation | (On)-Off-On |
| Contact Current Rating | 10 mA |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Panel Cut Out Diameter | 6.5mm |
| Actuator Length | 6.3mm |
| Actuator Material | Brass |
| Voltage Rating | 20V ac/dc |
| Contact Resistance | 10mΩ |
| Minimum Operating Temperature | -40°C |
| Panel Cut Out Size | 6.5 (Dia.)mm |
| Standards Met | CECC 96201-007, CSA, UL, UL Recognised, VDE |
| Operating Temperature Range | -40 +85°C |
| Maximum Operating Temperature | +85°C |
| Contact Material | Brass |
