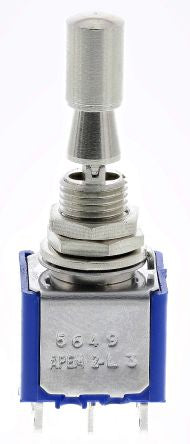

APEM Double Pole Double Throw (DPDT) Toggle Switch, On-Off-On, Panel Mount [5649A.3V]; 190-0636
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Switch Operation | On-Off-On |
| Contact Current Rating | 4 A @ 30 V dc |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Panel Cut Out Diameter | 6.5mm |
| Actuator Length | 15.1mm |
| Actuator Material | Nickel Plated Brass |
| Contact Resistance | 10mΩ |
| Maximum Operating Temperature | +85°C |
| Mechanical Life | 100000Operations |
| Operating Temperature Range | -40 +85°C |
| Panel Cut Out Size | 6.5mm |
| Contact Material | Silver |
| Minimum Operating Temperature | -40°C |
