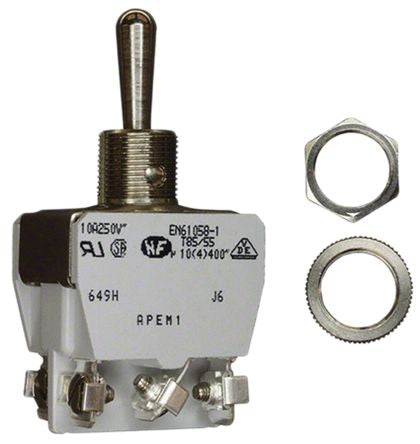

APEM Double Pole Double Throw (DPDT) Toggle Switch, On-Off-On, Panel Mount [649H]; 910-8096
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | DPDT |
| Switch Operation | On-Off-On |
| Contact Current Rating | 0.416666666666667 |
| Mounting Type | Panel Mount |
| Terminal Type | Screw |
| Panel Cut Out Diameter | 12.2mm |
| Actuator Length | 17.5mm |
| Actuator Material | Nickel Plated Brass |
| Voltage Rating | 400V ac |
| Contact Resistance | 10mΩ |
| Minimum Operating Temperature | -20°C |
| Contact Material | Nickel Alloy, Silver |
| Maximum Operating Temperature | +55°C |
| Mechanical Life | 10000 (Electrical)Cycles |
| Operating Temperature Range | -20 +55°C |
| Panel Cut Out Size | 12.2 (Dia.)mm |
| Standards Met | CSA, NF-VDE, UL, UL Recognized |
