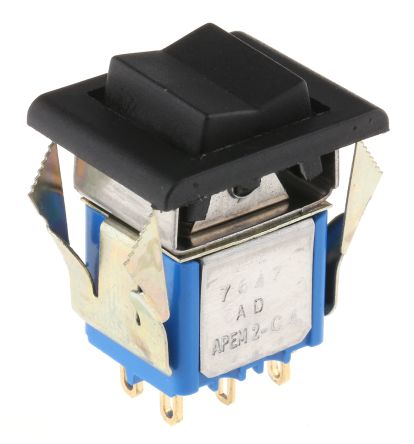

APEM Double Pole Double Throw (DPDT), (On)-Off-(On) Rocker Switch Panel Mount [7647AD+U1202+U732]; 692-5422
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Switch Operation | (On)-Off-(On) |
| Panel Cut Out Width | 15mm |
| Panel Cut Out Height | 12.5mm |
| Contact Current Rating | 4 A @ 30 V dc |
| Illuminated | No |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Actuator Shape | Rectangular |
| Minimum Operating Temperature | -40°C |
| Case Material | Diallyl Phthalate |
| AC Voltage Rating | 125 V, 250 V |
| Contact Material | Gold Plated Silver |
| DC Voltage Rating | 30V |
| Maximum Operating Temperature | +85°C |
| Panel Cut Out Size | 12.5 x 15mm |
| Operating Temperature Range | -40 → +85°C |
| Mechanical Life | 100000Operations |
| Contact Resistance | 10mΩ |
