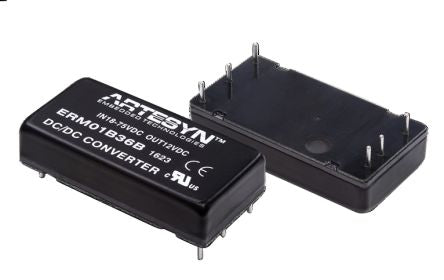

Artesyn ERM 20W Isolated DC-DC Converter Through Hole, Voltage in 18 → 75 V dc, Voltage out 12V dc Railway [EMR01B36B]; 174-3933
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 12V dc |
| Input Voltage Range | 18 → 75 V dc |
| Input Voltage Nominal | 24 V dc |
| Isolation Voltage | 3kV dc |
| Power Rating | 20W |
| Output Current | 1.67A |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Efficiency | 0.88 |
| Railway Approved | Yes |
| Package | 1 in x 2 in DIP |
| Minimum Temperature | -40°C |
| Load Regulation | ±0.5% |
| Maximum Temperature | +85°C |
| Series | ERM |
| Depth | 11mm |
| Standards Met | CE Certified, CULus Recognized, EN45545-2, EN50121-3-2, IEC/EN 50155 (IEC60571), IEC/EN 62368-1 (60950-1), UL/cUL 62368-1 (60950-1) |
| Width | 25.4mm |
| Length | 50.8mm |
