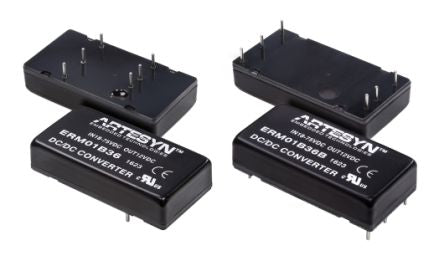

Artesyn ERM 20W Isolated DC-DC Converter Through Hole, Voltage in 40 → 160 V dc, Voltage out 12V dc Railway [ERM01BB110B]; 174-3444
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | ±12V dc |
| Output Voltage Adjustment Range | ±11.88 V dc, ±12.12 V dc |
| Input Voltage Range | 40 → 160 V dc |
| Input Voltage Nominal | 110 V dc |
| Isolation Voltage | 3kV dc |
| Power Rating | 20W |
| Output Current | 830mA |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Efficiency | 0.86 |
| Railway Approved | Yes |
| Package | DIP |
| Minimum Temperature | -40°C |
| Load Regulation | ±1% |
| Maximum Temperature | +85°C |
| Standards Met | EN45545-2, EN50121-3-2, IEC/EN 50155 (IEC60571), IEC/EN 62368-1 (60950-1), UL/cUL 62368-1 (60950-1) |
| Series | ERM |
| Length | 50.8mm |
| Width | 25.4mm |
| Depth | 11mm |
