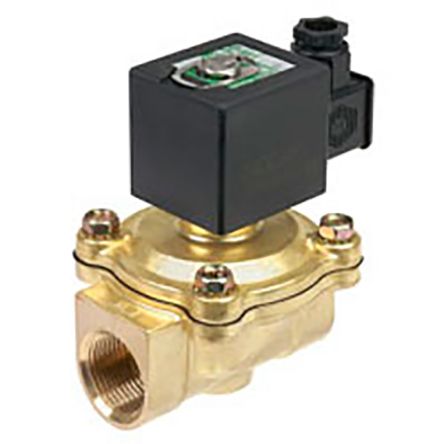

Asco Solenoid Valve G238A048T6A8, 2 port , NC, 230 V ac, 3/4in [SCG238A048BW.230/50]; 488-306
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 230 V ac |
| Number of Ports | 2 |
| Operation | Pilot |
| Connection | 3/4 in G Female |
| Connection Size | 3/4in |
| Default Valve Position | NC |
| Suitable Applications | Water |
| Type | 43863 |
| Orifice Diameter | 19mm |
| Body Material | Brass |
| Maximum Working Pressure | 10 bar |
| Operating Temperature Range | -20 → +75 °C |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +75°C |
| Thread Standard or Connection Type | G |
| Series | 238 |
| Flow Factor Kv | 4.5m³/h |
| Connection Gender | Female |
