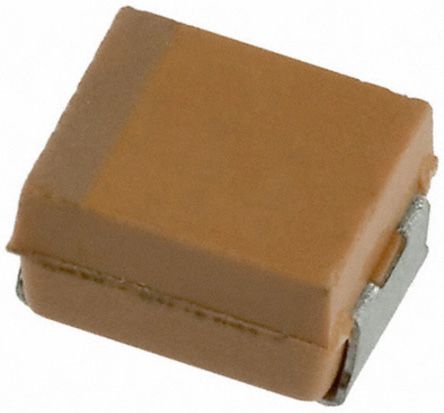

AVX 47μF Niobium Capacitor 6.3V dc ±20% Surface Mount 3.5mm NOJ Series [NOJB476M006RWJ]; 144-1950
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | NOJ |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage | 6.3 V dc |
| Package/Case | 3528-21 |
| Mounting Type | Surface Mount |
| Equivalent Series Resistance | 800mΩ |
| Dissipation Factor | 0.06 |
| Leakage Current | 5.6 μA |
| Dimensions | 3.5 x 2.8 x 1.9mm |
| Lead Pitch | 1.4mm |
| Depth | 2.8mm |
| Height | 1.9mm |
| Dielectric Material Family | Niobium |
| Minimum Operating Temperature | -55°C |
| Polarised | Polar |
| Tolerance Minus | -0.2 |
| Maximum Operating Temperature | +105°C |
| Length | 3.5mm |
| Surge Voltage | 13V |
| Tolerance Plus | 0.2 |
