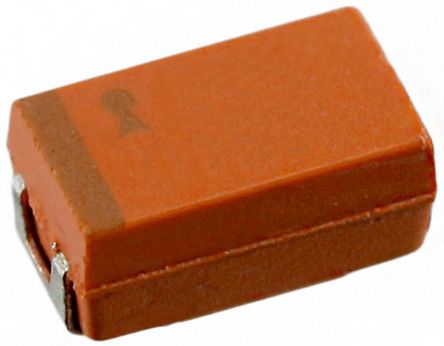

AVX 100μF Niobium Capacitor 6.3V dc ±20% Surface Mount 6mm NOJ Series [NOJC107M006RWJ]; 144-1856
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | NOJ |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage | 6.3 V dc |
| Package/Case | 6032-28 |
| Mounting Type | Surface Mount |
| Equivalent Series Resistance | 400mΩ |
| Dissipation Factor | 0.08 |
| Leakage Current | 12 μA |
| Dimensions | 6 x 3.2 x 2.6mm |
| Lead Pitch | 2.9mm |
| Depth | 3.2mm |
| Height | 2.6mm |
| Polarised | Polar |
| Tolerance Minus | -0.2 |
| Length | 6mm |
| Tolerance Plus | 0.2 |
| Minimum Operating Temperature | -55°C |
| Dielectric Material Family | Niobium |
| Surge Voltage | 13V |
| Maximum Operating Temperature | +105°C |
