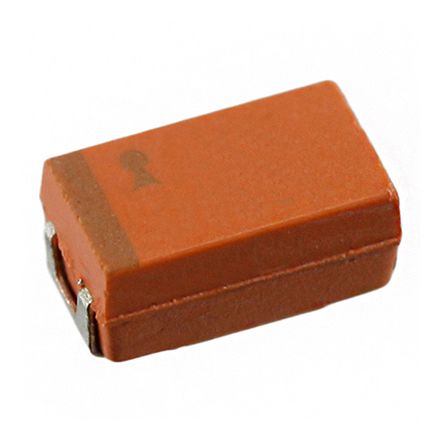

EPCOS 150μF Niobium Capacitor 4V dc ±20% Surface Mount 6mm NOS Series [NOSC157M004R0090]; 887-6004
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | NOS |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage | 4 V dc |
| Package/Case | 6032-28 |
| Mounting Type | Surface Mount |
| Equivalent Series Resistance | 90mΩ |
| Dissipation Factor | 0.06 |
| Leakage Current | 12 μA |
| Dimensions | 6 x 3.2 x 2.6mm |
| Lead Pitch | 2.9 (Min)mm |
| Height | 2.6mm |
| Terminal Type | Surface Mount |
| Dielectric Material Family | Niobium |
| Tolerance Plus | 0.2 |
| Minimum Operating Temperature | -55°C |
| Width | 3.2mm |
| Tolerance Minus | -0.2 |
| Length | 6mm |
| Surge Voltage | 2.6 ≤+105°C V, 5.2 V @ ≤+85°C |
| Maximum Operating Temperature | +125°C |
