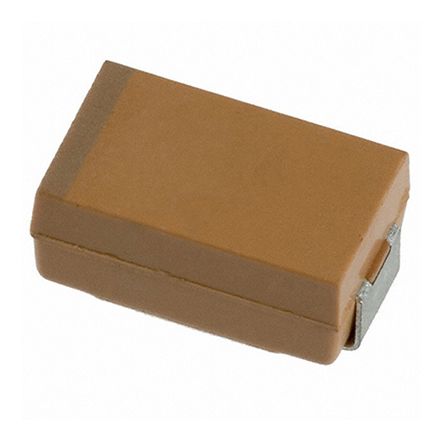

EPCOS 470μF Niobium Capacitor 4V dc ±20% Surface Mount 7.3mm NOS Series [NOSE477M004R0075]; 887-6016
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | NOS |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage | 4 V dc |
| Package/Case | 7343-43 |
| Mounting Type | Surface Mount |
| Equivalent Series Resistance | 75mΩ |
| Dissipation Factor | 0.12 |
| Leakage Current | 37.6 μA |
| Dimensions | 7.3 x 4.3 x 4.1mm |
| Lead Pitch | 4.4 (Min)mm |
| Height | 4.1mm |
| Terminal Type | Surface Mount |
| Maximum Operating Temperature | +125°C |
| Tolerance Plus | 0.2 |
| Dielectric Material Family | Niobium |
| Minimum Operating Temperature | -55°C |
| Width | 4.3mm |
| Tolerance Minus | -0.2 |
| Surge Voltage | 2.6 ≤+105°C V, 5.2 V @ ≤+85°C |
| Length | 7.3mm |
