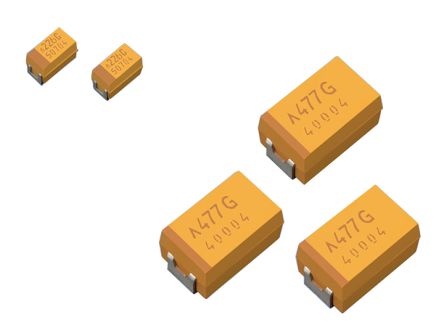

AVX Electrolytic Capacitor 330μF 2.5V dc Polymer Solid ±20% Tolerance TCJ Series [TCJB337M002R0045]; 144-1503
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Polymer |
| Capacitance | 330 µF |
| Voltage | 2.5 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 1210 (3225M) |
| Equivalent Series Resistance | 45mΩ |
| Lead Pitch | 1.4mm |
| Tolerance | ±20% |
| Length | 3.5mm |
| Depth | 2.8mm |
| Height | 1.9mm |
| Dimensions | 3.5 x 2.8 x 1.9mm |
| Series | TCJ |
| Electrolyte Type | Solid |
| Minimum Operating Temperature | -55°C |
| Dissipation Factor | 0.08 |
| Dielectric Material Family | Tantalum |
| Tolerance Plus | 0.2 |
| Maximum Operating Temperature | +105°C |
| Leakage Current | 82.5 μA |
| Polarised | Polar |
| Tolerance Minus | -0.2 |
